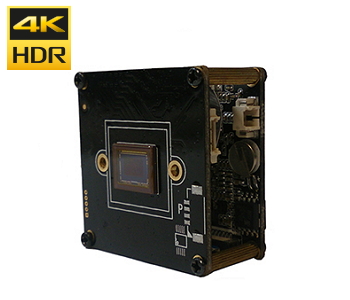

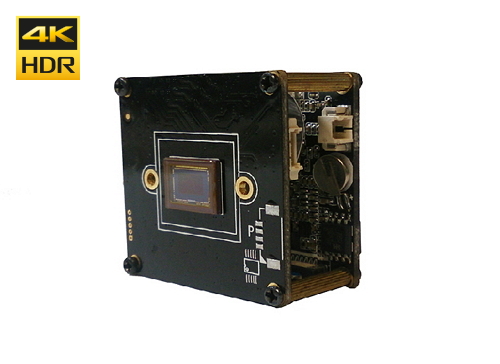

Ordering code: NMHN8678ZE
4K, 1/1.8" SONY Starvis2 IMX678 CMOS, HiSilicon Hi3519DV500, supreme low light performance, video codec: H.265 / H264 / MJPEG, up to 30 fps in 3840 x 2160 resolution, triple streaming, Serial RS485 to TCP/IP Ethernet Converter, PoE (optional), ONVIF Profile S
*lens not included
- Overview
- Specifications
- Downloads
Features
Neural network acceleration engine with processing performance up to 2.5 TOPS
1/1.8" SONY Starvis 2 IMX678 CMOS sensor
8 Megapixels
Starvis series with supreme low light performance
Video codec: H.265, H.264, MJPEG
Triple individually configurable video streams
Up to 30 fps in 3840 x 2160 resolution; 30fps in all other resolutions
HDR
Serial RS-485 to TCP/IP Ethernet Converter
Power over Ethernet (optional)
Supporting ONVIF Profile S
System on Chip (SoC) | HiSilicon Hi3519D V500 |
Image Sensor | 1/1.8" SONY Starvis 2 IMX678 CMOS sensor |
Lens | Not included |
DC-iris | Supported |
Minimum Illumination | 0.001 Lux/F1.2 (color); 0.0005 Lux/F1.2 (B/W) |
HDR | 120dB |
Video | Codec: H.265, H.264, Motion JPEG Resolutions: 3840 x 2160 to 480 x 272 Frame rate: up to 30 fps in 3840 x 2160; up to 30 fps in all other resolutions Streaming: triple Rate control: VBR/CBR/fixed QP |
Memory | 1024 MB DRAM, 8 GB eMMC |
Network | Network Interface: 100 Mbps Ethernet Supported Protocols: IPv4, IPv6, ICMP, IGMP, QoS, TCP, UDP, DHCP, DNS, DDNS, mDNS, zeroconf, HTTP, HTTPS, NTP, RTP, RTCP, RTSP, TLS, UPnP, ARP Supported Protocols (optional): FTPS, RTMP, SIP, SMB/CIFS, SMTP, SNMPv3, WebRTC, P2P, 802.1X, PPPoE |
Audio | Audio Coding: G.711 PCM, G.726 ADPCM, MP3 (optional), AAC LC (optional) Audio Interface: microphone in, line out |
Software Integration | ONVIF, CGI, embedded applications (optional) |
System Integration | 1 alarm in, 1 alarm out, 1 serial RS-485 |
Power Source | DC 12V, Power over Ethernet (optional) |
Power Consumption | Typical 3.5W |
Operation Condition | -20~50°C |
Dimension (L x W x H) | 42mm*42mm*9.5mm |
Weight | 62g |
Datasheet | 2024.04.16 | Download | |
Firmware | coming soon | ||
Quick installation guide | coming soon | ||
User’s manual | coming soon |
