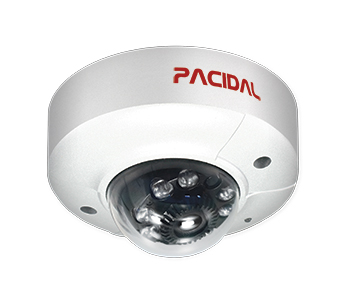

1080p DTV Mini Dome Camera

1000-meter transmission distance, remote control, 2 megapixels, IP66, 20 m IR LED, Day & Night, simultaneously dual H.264 streams, internal microSD slot

  • Overview
  • Specifications
  • Downloads

Pacidal DFD207 is a new-generation 2-megapixel, mini dome camera adopting digital TV technology with excellent full HD 1080p video transmission over coaxial cables. If you are considering upgrading your current analog CCTV system to full HD quality, DTV surveillance is definitely your best choice. The installation process is quick and easy. The existing coaxial cables can be reused and the system deployment is the exactly same as CCTVs. So there is no need to re-plan the whole structure or re-deploy new cables. DFD207 has day and night function with built-in infrared LEDs, which can enhance the image performance under low-light conditions, with an effective illumination distance up to 20 meters (64 ft.). DFD207 is also suitable for ourdoor usage since its weatherproof IP66-rating casing helps prevent the camera against rain and dust. DFD207 transmits simultaneously dual video streams in H.264 (both individually configurable), including one HD stream and one SD stream, both at full frame rates (30fps). Its transmission range can be up to 1000 meters (3300 ft.) without using extra repeater.



Excellent full HD 1080p video quality over coaxial cables

Transmission distance up to 1000 meters (3300 ft.) without repeaters, using 5C-2V or RG-6 coaxial cables; 500 meters with 3C-2V or RG-59 coaxial cables

1/2.7” CMOS with 1920 x 1080 resolution

Infrared LEDs with 20-meter effective illumination distance (adjustable)

Weatherproof IP66-rated

Dual, individually configurable video streams in H.264, including one HD stream and one SD stream, both at 30 fps

Internal microSD card slot for local storage

Image Sensor 1/2.7” CMOS with 1920 x 1080 resolution
Lens IR-corrected
Fixed-focal lens
f = 3.6 or 6 mm
Shutter time 1/10000 s to 1/8 s
Iris Fixed
Day and Night LED illuminator
Minimum Illumination

0.2 Lux/F1.2 (Color)
0.03 Lux/F1.2 (B/W)

0 Lux (LED illuminator on)

LED illuminator Built-in infrared LEDs
LED illumination distance Up to 20 meters, adjustable
Video Compression: H.264 (MPEG-4 Part 10/AVC)
Resolutions: 1920 x 1080 to 320 x 180
Frame rate: up to 30 fps in all resolutions
Streaming: dual, individually configurable H.264 streams with resolutions in one HD stream and one SD stream, both at 30 fps
Controllable frame rate and bit rate, VBR/CBR H.264
Image Settings Brightness, contrast, color saturation, sharpness, white balance, backlight compensation, exposure control, flicker control, fine-tuning of behavior at low light conditions, noise filter, flipping & mirror, time stamp, text overlay, privacy mask

Supported standards: DVB-T

Control channel: RS-232
Frequency settings: adjustable via an internal 16-position rotary switch or control channels (default: 177MHz, with 6MHz bandwidth)

Transmission distance: 1000 meters with 5C-2V or RG-6 coaxial cables, 500 meters with 3C-2V or RG-59

Series connection: external power pass filter

Security: multi-level user access with password protection, address filtering, encryption, digest authentication, user access log

Viewing System Digital television: with a built-in DVB-T receiver--directly connecting to digital antenna input; otherwise--through a DVB-T set-top box
DVR/NVR: 4/8/16 channel DTV DVR/NVR
PC: through a DTV capture card
Mobile devices: Android, iOS (through NVR)
System Integration

Application programming interface: open API for software integration, SDK, ONVIF

Intelligent video: face detection and recognition (optional), motion detection

Alarm triggers: intelligent video
Alarm actions: save to camera microSD/microSDHC cards (cards not included)
Casing Metal, IK-10
Weatherproof IP66

128 MB RAM, 128 MB flash

Power Source

DC 12V~15V
Power consumption: typical 2.8W, maximum 3.84W (LED illuminator off), 4.9W (LED illuminator on)

Network Connector BNC for DTV video transmission & control channels
Local Storage Internal microSD slot
LED Indicators System and network status indicators
Users Broadcasting to unlimited numbers of users
Operating Conditions

-20℃ ~50℃ (-4℉~122℉)

20~80% RH (noncondensing)

Approvals CE, FCC, RoHS


(L x W x H)

108 mm (4.25") x 108 mm (4.25") x 62 mm (2.44")
Weight 309 g (0.68 lb.)
