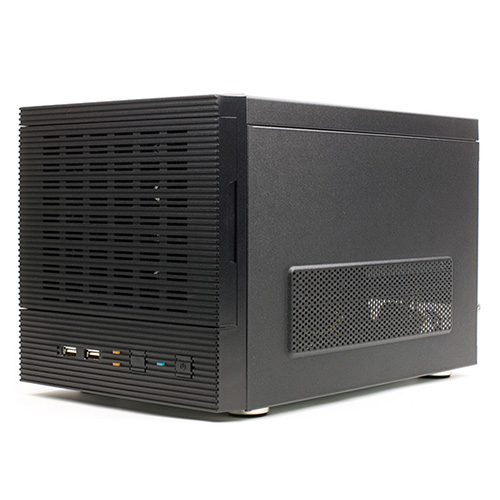

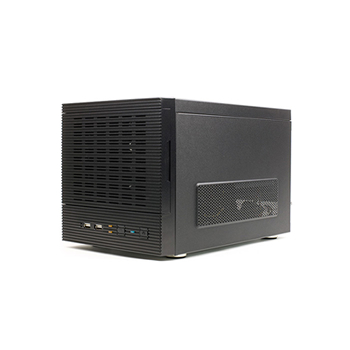

16ch H.265 Video Management System
NVR4016

Embedded Linux OS, 16 channels, Intel® GPU hardware H.265/H.264/M-JPEG decoding, 3.5" SATA III hot swappable hard disk bays x 4, RAID



*HDD not included

  • Overview
  • Specifications
  • Downloads



Features

Embedded Linux OS

Intel® GPU hardware H.265/H.264/M-JPEG decoding

4/8/16ch IP cameras recording

Supporting IP camera resolutions up to 5MP

3.5" SATA III hot swappable hard disk bays x 4

Optical and digital PTZ for live view and playback

Dual streaming for recording and local/remote/mobile live view

NVR software pre-installed on DOM module for rapid system deployment

ONVIF

Free-bundled Windows, WEB, CMS client and iOS/Android app

CPU Intel dual core processor
DRAM

8GB DDR4 RAM

OS Embedded Linux system in 1GB DOM
HDD capacity Four 3.5" SATAIII hard disks
HDD tray

4 hot-swappable bays

HDD mode RAID
Camera input

Video compression: H.265 / H.264 / M-JPEG

Video streaming: dual streams for each channel

Audio compression: G.711/G.726 PCM

Output HDMI port x1 , VGA port x 1
Connectors Gigabit Ethernet port x 1, USB 2.0 port (front panel) x 2, USB 2.0 port (rear panel) x 4
Local display

Display splits: 1/4/8/12/16

Display speed: max. 16ch 480 fps real-time monitoring at 1080p

Display control: video snapshot, optical PTZ control, digital PTZ control, audio control

Screen rotation: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 1+2, 1+3, 1+5, 1+7, 1+12

OSD information: camera title, date, time, video loss, motion detection, recording mode

Remote monitoring (Windows)

Viewing modes: 1x1, 2x2, 3x3, 3x4 or 4x4, 8x8, sequential display from multi-site NVR servers simultaneously

OSD information: camera title, date, time

Event actions: on-screen event alerts, event logs, digital output, e-mail notifications with video recordings attached

Recording

Encoding speed: max. 16 ch 480 fps real-time monitoring at 1080p

Modes: manual/schedule/event

Priority: manual > schedule > event

Motion detection: supported

Local playback

Playback speed: max. 16-CH 480 fps at 1080p

Playback modes: 1x1, 2x2, 3x3, 4x4 viewing modes

Search modes: timeline/motion/event

Playback control: play, pause, reverse play, previous/next frame, speed control (1x, 2x, 4x, 8x, 16x), video snapshot, digital zoom, audio control

Export: converting recorded video to .avi, .asf or .mkv formats and exporting to a USB storage

Remote playback (Windows)

Viewing modes: 1x1, 2x2, 3x3, 4x4, sequential display

OSD information: camera title, date, time, recording status, event status

Video control: full screen display, original video aspect ratio, video snapshot, optical PTZ control, digital PTZ control, audio control

Event control: event list, digital input status, digital output control

Security

Authority management: multi-level privilege

Event logs: supported

User logs: supported

Network

Interface: Gigabit Ethernet, RJ-45

Supported protocols: HTTP, DHCP, Static IP, DNS, PPPoE, DDNS, FTP, NTP, RDATE, SSH, UPnP, SMTP

Bandwidth control: supported

Power

Power supply: flex ATX 250W, AC110/220V auto switch

Dimensions

(L x W x H)

300 mm x 200 mm x 250 mm
Setup wizard

NVR setup wizard (discovery NVR, NVR network setting)

Others Windows client, Web client, CMS client, iPhone/iPad client, Android client
