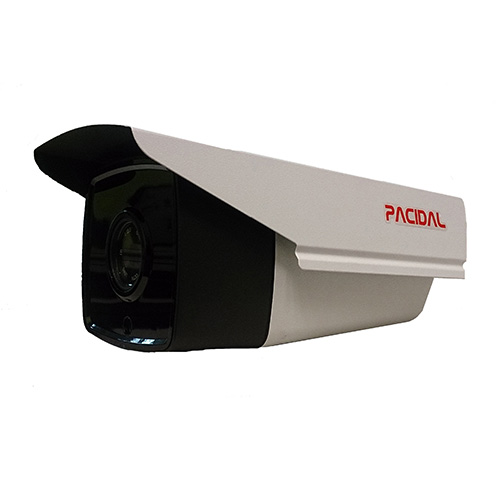

4MP H.265 Network Camera

4MP, 1/3" OV4689 CMOS, HDR, video codec: H.265 / H264 / MJPEG, up to 20 fps in 2592 x 1520 resolution, 30 fps in all other resolutions, triple streaming, PoE, 20~50 m IR LED, Day & Night, ONVIF Profile S


  • Overview
  • Specifications
  • Downloads



1/3” OV4689 CMOS sensor

4 Megapixels

Video codec: H.265, H.264, MJPEG

Triple individually configurable video streams

Up to 20 fps in 2592 x 1520 resolution (30 fps optional); 30fps in all other resolutions


Power over Ethernet (PoE)

IR LEDs with illumination distance 20~50 m

Day & Night

Supporting ONVIF Profile S

System on Chip (SoC) Hi3516D
Image Sensor 1/3" OV4689 CMOS with 2688 x 1520 resolution
Lens IR-corrected
Fixed-focal lens, f = 4, 6, or 8mm
Shutter time 1/10000 s to 1/8 s
Iris Fixed
Day and Night LED illuminator
Minimum Illumination

0.05 Lux/F1.2 (color); 0.01 Lux/F1.2 (B/W)

LED illuminator Built-in infrared LEDs
LED illumination distance 20~50 meters

True HDR, 90dB

Video Codec: H.265, H.264, Motion JPEG
Resolutions: 2592 x 1520 to 320 x 180
Frame rate: up to 20 fps in 2592 x 1520 (30fps optional); up to 30 fps in all other resolutions
Streaming: triple
Rate control: VBR/CBR
Standards ONVIF Profile S
Memory 256 MB RAM, 16 MB flash

Network Interface: 100 Mbps Ethernet

Supported Protocols: IPv4, IPv6, HTTP, HTTPS, TCP/IP, FTP, SMTP, UPnP, IGMP, RTSP/RTP/RTCP, DHCP, NTP, PPPoE, DNS, DDNS, UDP, Bonjour, QoS


Audio Compression: AAC LC, G.711 PCM

Audio Interface: microphone in, line out

System Integration 1 alarm in, 1 alarm out
Power Source

DC 12V2A, Power over Ethernet (PoE)

Power Consumption Typical 2.8W
Operation Condition -10~55°C
Dimension (L x W x H) 185mm*108mm*84mm
Weight 553g
