a hybrid camera for video transmission over both Ethernet and coaxial cables, 2 megapixels, 30 fps, CS-mount, DC-iris, Day & Night, simultaneously dua H.264 video streams plus one M-JPEG stream, PoE, microSD slot
*lens not included
- Overview
- Specifications
- Downloads

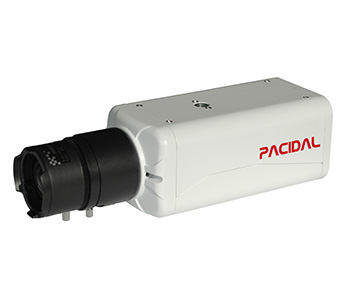

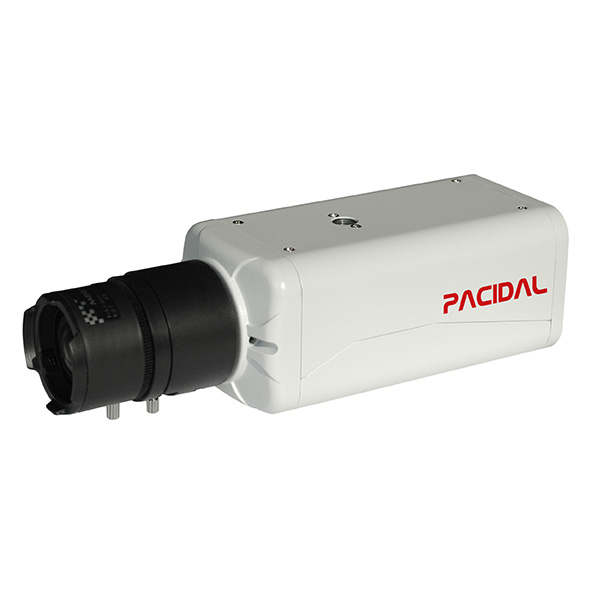

Pacidal HBX505 is a hybrid camera that supports the transmission of videos over Ethernet and coaxial cables. This model can fulfil the needs for both local surveillance and remote surveillance at the same time, with the former being controlled and monitored by coaxial connections and the latter by Ethernet connections. HBX505 supports individually configurable triple video streaming (all individually configurable), including simultaneously dual H.264 video streams plus one Motion JPEG video stream, all at full frame rates. The design of HBX505 is suitable for CS-mount lens, which extends the flexibility for lens selections. The Power over Ethernet function supplies power through Ethernet cables, reducing the degrees of clutters in cable deployment.
Features
a hybrid camera for video transmission over both Ethernet and coaxial cables
1/2.7” CMOS with 1920 x 1080 resolution
CS-mount (*lens not included)
Triple, individually configurable video streaming, including one HD (in H.264), one SD (in H.264), and one SD (in M-JPEG), all at 30 fps
DC-iris control
Mechanical IR-cut removable filter for Day & Night function (optional)
Power over Ethernet (IEEE 802.3af Class 1)
MicroSD card slot for local storage
Image Sensor | 1/2.7” CMOS with 1920 x 1080 resolution |
Lens (optional) | CS-mount IR-corrected |
Shutter time | 1/10000 s to 1/8 s |
Iris control | DC-iris |
Day and Night | Automatically removable infrared-cut filter (optional) |
Minimum Illumination | 0.2 Lux/F1.2 (Color) 0.03 Lux/F1.2 (B/W) |
Video | Compression: H.264 (MPEG-4 Part 10/AVC), Motion JPEG Resolutions: 1920 x 1080 to 320 x 180 Frame rate: up to 30 fps in all resolutions Streaming: Triple, individually configurable streams with resolutions in one HD (H.264), one SD (H.264), and one SD (Motion JPEG), all at 30 fps Controllable frame rate and bit rate, VBR/CBR H.264 |
Image Settings | Brightness, contrast, color saturation, sharpness, white balance, backlight compensation, exposure control, flicker control, fine-tuning of behavior at low light conditions, noise filter, flipping & mirror, time stamp, text overlay, privacy mask |
Pan/Tilt/Zoom | Digital PTZ |
Audio | Streaming: two-way Compression: AAC LC, G.711 PCM Input/output: built-in microphone, external line out |
Network | Interface: 100 Mbps Ethernet, RJ-45 Security: multi-level user access with password protection, IP address filtering, HTTPS encryption, digest authentication, user access log Supported protocols: IPv4, IPv6, HTTP, HTTPS, TCP/IP, FTP, SMTP, UPnP, IGMP, RTSP/RTP/RTCP, DHCP, NTP, PPPoE, DNS, DDNS, UDP, Bonjour, QoS |
DTV | Supported standards: DVB-T Control channel: RS-232 Transmission distance: up to 500 meters with 5C-2V or RG-6 coaxial cables Series connection: external power pass filter |
Viewing System | Operating system: Windows 8/7//Vista/XP SP3 Browser: IE8 or higher Video player: VLC Mobile devices: Android, iOS (through NVR) |
System Integration | Application programming interface: open API for software integration, SDK, ONVIF Intelligent video: Face detection and recognition (optional), motion detection Alarm triggers: intelligent video, audio detection, digital input |
Casing | Metal |
Memory | 128 MB RAM, 128 MB flash |
Power Source | DC 12V, Power over Ethernet (IEEE 802.3af Class 1) Power consumption: typical 3.2W, maximum 3.84W |
Network Connector | RJ-45 for Ethernet/PoE connection, BNC for DTV video transmission & control channels |
Local Storage | MicroSD slot |
Alarm input/output | One digital input, one relay output (30W) |
LED Indicators | System and network status indicators |
Users | 10 simultaneous unicast users, unlimited users using multicast |
Firmware Upgrade | Upgrade through webpage |
Operating Conditions | -20℃ ~50℃ (-4℉~122℉) 20~80% RH (noncondensing) |
Approvals | CE, FCC, RoHS |
Standards | ONVIF |
Dimension | 120 mm (4.72") x 61 mm (2.4") x 51 mm (2.01") |
Weight | 268 g (0.59 lb.) |
