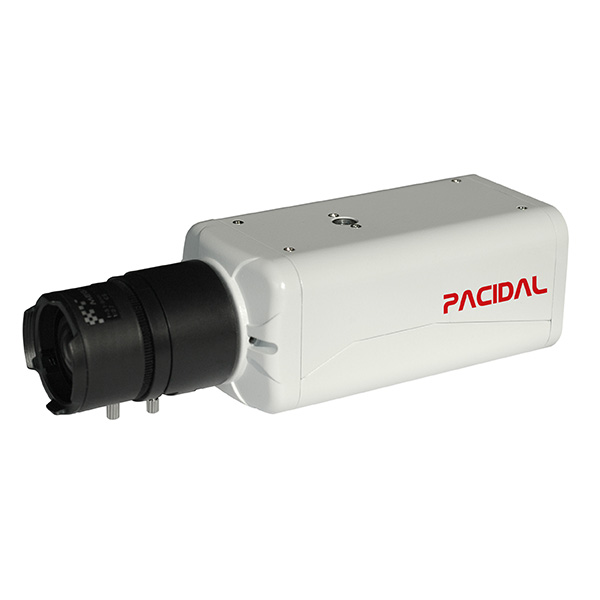

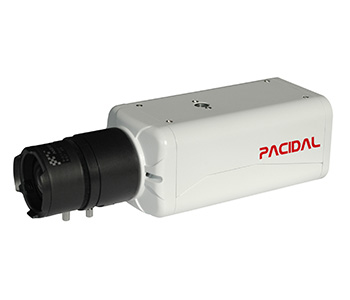

1080p Network Box Camera

2 megapixels, 30 fps, CS-mount, DC-iris, Day & Night, simultaneously dual H.264 streams plus one M-JPEG stream, PoE, microSD slot


*lens not included

  • Overview
  • Specifications
  • Downloads

Pacidal NBX305 is a 2-megapixel and true day & night network camera with excellent HD image quality. It supports triple video streaming (all individually configurable), including simultaneously dual H.264 video streams plus one Motion JPEG video stream, all at full frame rates. The design of NBX305 is suitable for CS-mount lens, which extends the flexibility for lens selections. Adaptive to extreme weather conditions, the camera presents a great range of temperature tolerance, from -20°C to 50°C (4°F to 122°F), and can be used in an outdoor environment when housing is added. In addition, Power over Ethernet supplies power through network cables, reducing the degrees of clutters in cable deployment. NBX305 is definitely your best cost-effective network camera to choose.



1/2.7” CMOS with 1920 x 1080 resolution

CS-mount (*lens not included)

Triple individually configurable video streams, including one HD (in H.264), one SD (in H.264), and one SD (in M-JPEG), all at 30 fps

DC-iris control

Mechanical IR-cut removable filter for day and night function (optional)

Power over Ethernet (IEEE 802.3af Class 1)

MicroSD card slot for local storage

Image Sensor 1/2.7” CMOS with 1920 x 1080 resolution
Lens (optional)


Vari-focal, f = 3~8 mm

Shutter time 1/10000 s to 1/8 s
Iris control DC-iris
Day and Night Automatically removable infrared-cut filter (optional)
Minimum Illumination

0.2 Lux/F1.2 (Color)

0.03 Lux/F1.2 (B/W)
Video Compression: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
Resolutions: 1920 x 1080 to 320 x 180
Frame rate: up to 30 fps in all resolutions
Streaming: Triple, individually configurable streams with resolutions in one HD (H.264), one SD (H.264), and one SD (Motion JPEG), all at 30 fps
Controllable frame rate and bit rate, VBR/CBR H.264
Image Settings Brightness, contrast, color saturation, sharpness, white balance, backlight compensation, exposure control, flicker control, fine-tuning of behavior at low light conditions, noise filter, flipping & mirror, time stamp, text overlay, privacy mask
Pan/Tilt/Zoom Digital PTZ
Audio Streaming: two-way
Compression: AAC LC, G.711 PCM
Input/output: built-in microphone, external line out
Network Interface: 100 Mbps Ethernet, RJ-45
Security: multi-level user access with password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
Supported protocols: IPv4, IPv6, HTTP, HTTPS, TCP/IP, FTP, SMTP, UPnP, IGMP, RTSP/RTP/RTCP, DHCP, NTP, PPPoE, DNS, DDNS, UDP, Bonjour, QoS
Viewing System Operating system: Windows 8/7/Vista/XP SP3
Browser: IE8 or higher
Video player: VLC
Mobile device: Android, iOS (through NVR)
System Integration

Application programming interface: open API for software integration, SDK, ONVIF

Intelligent video: face detection and recognition (optional), motion detection

Alarm triggers: intelligent video, audio detection, digital input
Alarm actions: file upload through FTP and e-mail, save to camera microSD/microSDHC cards (cards not included), play audio alerts, relay output activation

Casing Metal
Memory 128 MB RAM, 128 MB flash
Power Source DC 12V, Power over Ethernet (IEEE 802.3af Class 1)
Power consumption: typical 2.8W, maximum 3.84W
Network Connector RJ-45 for Ethernet/PoE connections
Local Storage MicroSD slot
Alarm input/output One digital input, one relay output (30W)
LED Indicators System and network status indicators
Users 10 simultaneous unicast users, unlimited users using multicast
Firmware Upgrade Upgrade through webpage
Operating Conditions

-20℃ ~50℃ (-4℉~122℉)

20~80% RH (noncondensing)

Approvals CE, FCC, RoHS
Standards ONVIF


(L x W x H)

120 mm (4.72") x 61 mm (2.4") x 51 mm (2.01")
Weight 248 g (0.548 lb.)
