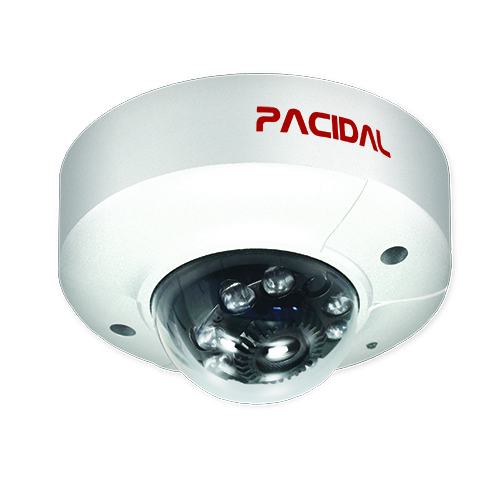

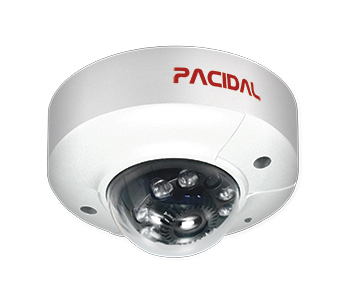

1080p Mini Dome Camera
NFD307

2 megapixels, 30 fps, IP66, 20 m infrared LED, Day & Night, simultaneously dual H.264 streams plus one M-JPEG stream, PoE, internal microSD slot,

  • Overview
  • Specifications
  • Downloads

Pacidal NFD307 is a 2-megapixel, day and night bullet camera suitable for outdoor uses. Its weatherproof IP66-rated casing helps prevent the camera against rain and dust. NFD307 goes with built-in infrared LEDs that can enhance the image performance under low-light conditions, with the effective illumination distance up to 50 meters. It is also adaptive to harsh weather conditions, showing a great range of temperature tolerance, from -20℃ to 50℃ (4℉ to 122℉). NFD307 supports triple video streaming (all individually configurable), including simultaneously dual H.264 video streams plus one Motion JPEG video stream, all at full frame rates. In addition, Power over Ethernet supplies power through network cables, reducing the degrees of clutters in cable deployment.



Features

1/2.7” CMOS with 1920 x 1080 resolution

Weatherproof IP66-rated

Infrared LEDs with up to 20-meter effective illumination distance (adjustable)

Triple individually configurable video streaming, including one 1080p HD (in H.264), one SD (in H.264), and one SD (in M-JPEG), all at 30 fps

Power over Ethernet (IEEE 802.3af Class 2)

Internal microSD card slot for local storage

Image Sensor 1/2.7” CMOS with 1920 x 1080 resolution
Lens IR-corrected
Fixed-focal lens, f = 3.6 or 6 mm
F1.8
Shutter time 1/10000 s to 1/8 s
Iris Fixed
Day and Night LED illuminator
Minimum Illumination

0.2 Lux/F1.2 (Color)
0.03 Lux/F1.2 (B/W)

0 Lux (LED illuminator on)

LED illuminator Built-in infrared LEDs
LED illumination distance Up to 20 meters, adjustable
Video Compression: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
Resolutions: 1920 x 1080 to 320 x 180
Frame rate: up to 30 fps in all resolutions
Streaming: Triple, individually configurable streams with resolutions in one HD (H.264), one SD (H.264), and one SD (Motion JPEG), all at 30 fps
Controllable frame rate and bit rate, VBR/CBR H.264
Image Settings Brightness, contrast, color saturation, sharpness, white balance, backlight compensation, exposure control, flicker control, fine-tuning of behavior at low light conditions, noise filter, flipping & mirror, time stamp, text overlay, privacy mask
Pan/Tilt/Zoom Digital PTZ
Network Interface: 100 Mbps Ethernet, RJ-45
Security: multi-level user access with password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
Supported protocols: IPv4, IPv6, HTTP, HTTPS, TCP/IP, FTP, SMTP, UPnP, IGMP, RTSP/RTP/RTCP, DHCP, NTP, PPPoE, DNS, DDNS, UDP, Bonjour, QoS
Viewing System Operating system: Windows 8/7/Vista/XP SP3
Browser: IE8 or higher
Video player: VLC
Mobile device: Android, iOS (through NVR)
System Integration

Application programming interface: open API for software integration, SDK, ONVIF

Intelligent video: face detection and recognition (optional), motion detection

Alarm triggers: intelligent video
Alarm actions: file upload through FTP and e-mail, save to camera microSD/microSDHC cards (cards not included)

Casing Metal, IK-10
Weatherproof IP66
Memory

128 MB RAM, 128 MB flash

Power Source

DC 12V, Power over Ethernet (IEEE 802.3af Class 2)
Power consumption:typical 2.8W, maximum 3.48W (LED illuminator off), 6.49W (LED illuminator on)

Network Connector RJ-45 for Ethernet/PoE connections
Local Storage Internal microSD slot
LED Indicators System and network status indicators
Users 10 simultaneous unicast users, unlimited users using multicast
Firmware Upgrade Upgrade through webpage
Operating Conditions

-20°C ~50°C (-4°F~122°F)

20~80% RH (noncondensing)

Approvals CE, FCC, RoHS
Standards ONVIF

Dimension

(L x W x H)

108 mm (4.25") x 108 mm (4.25") x 62 mm (2.44")
Weight 309 g (0.68 lb.)
